The Perfect Coding Solution for VFFS
Designed to be highly configurable allowing for multiple print lanes to be coded without shuttling print heads or expensive laser systems. The unit can be integrated into almost any VFFS machine, regardless of seal type whether pillow, gusseted, block, or doy. Longitudinal and horizontal printing can also be accommodated with ease.
With a small footprint, a modular design and with no moving parts to consider, norwix print solutions give maximum uptime with almost no maintenance and comes with a true Lifetime Warranty on all parts.
New Build or Retrofit Integration
Installing an iSP into a new build or retrofit is a matter of providing a mounting plate for the slides to affix . Often the existing film path can be used with no additional rollers required.
- Upgrade simply with minimal engineering
- Slide mount allows for external cartridge access
- Ideal for New-Build or Retrofit
Replaces all Other Printers
If you have used other print technologies, then you know how costly it can get. Why pay more when you can get better throughput, zero maintenance, simple installation and guaranteed performance with a Lifetime Warranty.
- CIJ—No shuttling heads, no mess, no smell.
- TTO—No ribbons, no replacing of print heads
- Laser—No high upfront hardware costs, no extraction systems.
Better Throughput / Better ROI
The print system can be running in a matter of seconds with the minimum of user intervention, always ensuring maximum productivity. With TIJ based print heads from Norwix, you use only the ink you print.
- Maximum uptime, zero downtime
- No maintenance costs
4 Film Widths, 4 to 20 Lanes

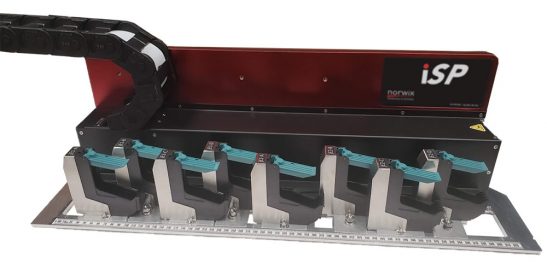

The iSP comes in four standard roll widths—600mm, 800mm, 1000mm and 1200mm. Then choose how many lanes are need to be supported. From 4 to 20 lanes, with moveable print heads that can be locked into position to suit your application.
Installation Options
Mount the iSP unit directly into your roll feed on your machine, or you can take the option al iSP mounting assembly that enables you to drop the whole unit in for fast and efficient integration.
Print Technology | Thermal InkJet (TIJ) |
Max Print Height | 2″ maximum (supports up to 16″) |
Printable Items | Lot Codes, Datecodes, Alphanumeric, Barcodes, Bitmaps |
Barcode Printing | EAN-13/EAN 8, UPC-A, Code128, ITF-14, ITF-2of5, Code39, Crypotcode, GS1 Datamatrix, QR (114 barcode support included) |
Print Speeds | up to 500fpm @300dpi |
Print resolution | 600/600 dpi max |
Print Density | user configurable |
Ink Types | Aqueous and Solvent |
Bulk Ink Available | Yes |
Connectivity | Ethernet, I/O, Sensor, Encoder, Stack Light Daisy Chain |
Voltage | 115V to 240V |
Software Included | Producer and Director (Enterprise grade) |
Languages | English, Spanish, German, French |
Warranty | Lifetime Warranty |
Designed for Form Fill Seal
- Lower cost than other technologies with FFS
- Better throughput – change cartridges at 500,000 prints!
- Cleaner to use. No Ribbons or MEK ink
- Simple to retrofit – bolt into existing machinery
- Easy to operate
- No Maintenance, No mess solution
- Up to 600 dpi print resolution for stunning barcodes, graphics and alphanumeric
Managed Print
- Improved ease of use – no need to program ink drive parameters
- Print drive parameters pre-set to optimize each inks performance and efficiency
- Ink tracking and cartridge type awareness
- Enables full functionality of the software
- Ability to fine tune drive parameters for specialized applications
- Expanded maintenance and recovery features to keep cartridges working in the most difficult applications
Lifetime Warranty
- All products from cables to screens to print heads have a Lifetime Warranty
- No exclusions on labor or hardware
- A guarantee of reliability for life
- If there is ever a problem, we will replace it free of charges for the Lifetime of that product whether 1 year or 10 years from now.
