Available October 2026

UC12

All-In-One Controller

Primary & Secondary Packaging Solution. Sunrise 2027 Ready.

7”
Touch screen
1 - 4
HP or Brady heads
.5”– 4.25”
Print height
500
ft/min max speed (1/2" Cartridge)

A Reliable Compact Solution

The UC12 is capable of printing high-quality 2D codes, barcodes, alphanumerics, lot codes, expiration dates, bitmaps, and more—meeting the demands of modern packaging environments. The UC12 is available in two configurations to match application needs: the UC12 – Brady, which supports up to four 1” cartridges, and the UC12 – HP, which supports up to four ½” cartridges. With its industrial design and seamless integration capabilities, the UC12 ensures consistent, high-quality output while maximizing uptime and operational efficiency.

01
.5” to 4.25” Print Height Capability
02
Compact Footprint for Easy Integration
03
2D Code Capable
04
CIJ and TTO Replacement
05
.5” and 1” Cartridge Compatible
06
Controls up to 4 Print Heads

Two configurations

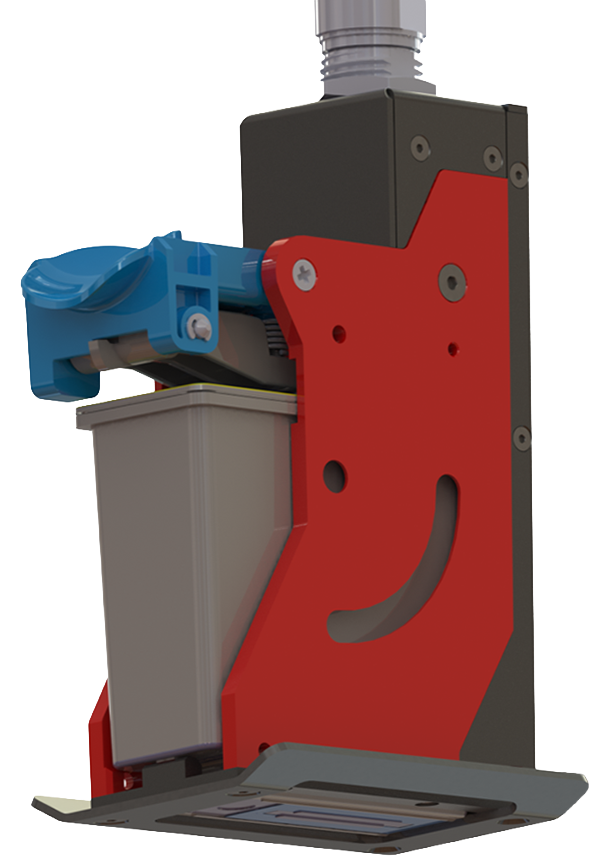

UC12 – Brady

Up to four 1” cartridges

Print Swath26.9mm / 1.06 in
Print Resolution600 dpi
Firing Frequency20 kHz
Cartridge Capacity 60ml
Max Speed (300 dpi*)330 ft/min

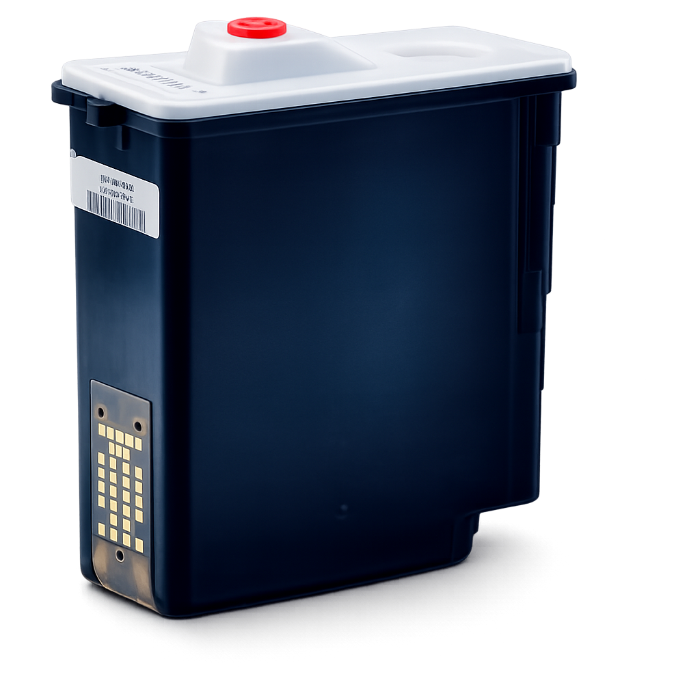

Brady ( 1” ) — Norwix licensed ink filling

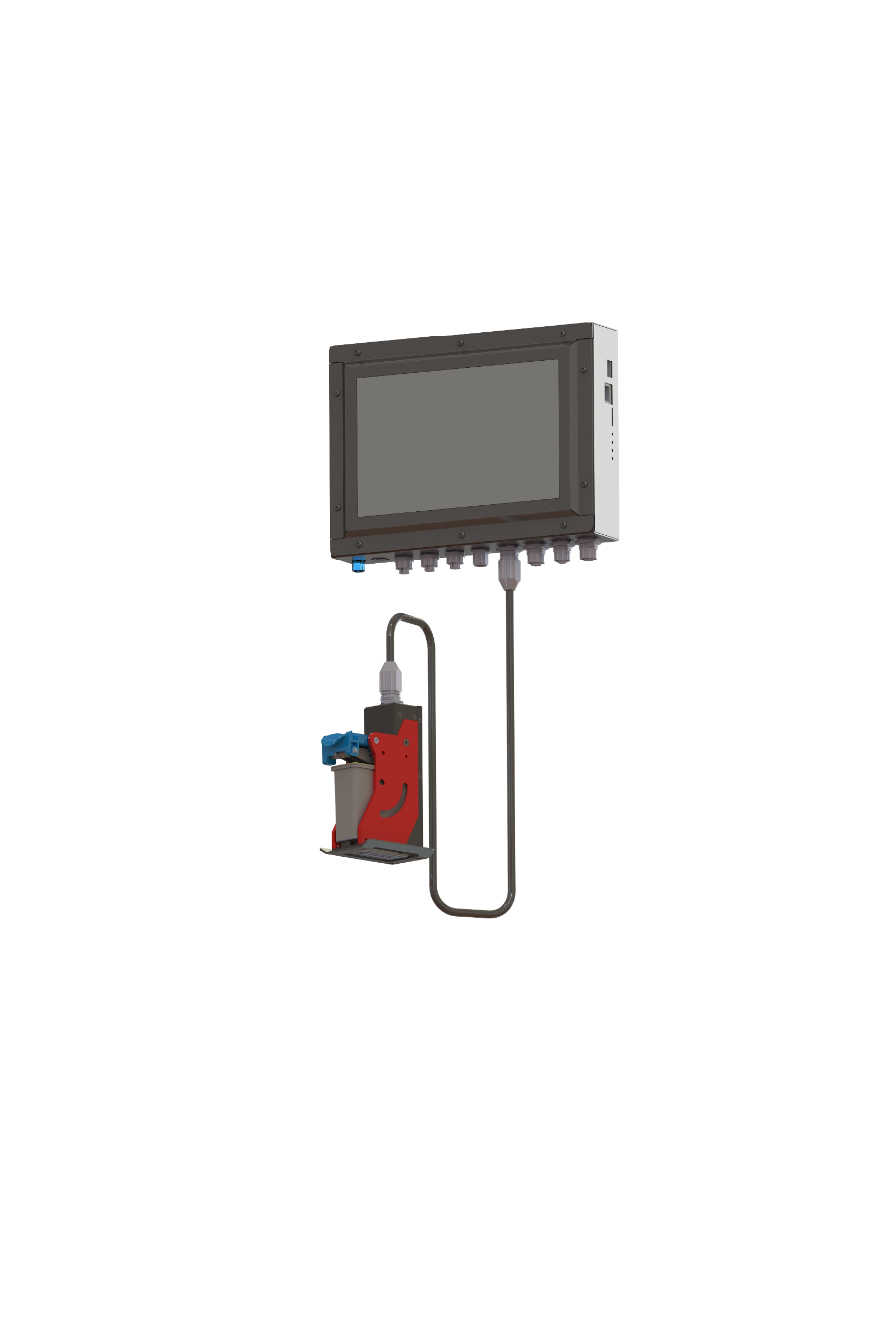

UC12 – HP

Up to four ½” cartridges

Print Swath12.7mm / 0.5 in
Print Resolution600 dpi
Firing Frequency15 kHz
Cartridge Capacity40ml / Bulk
Max Speed (150 dpi*)500 ft/min

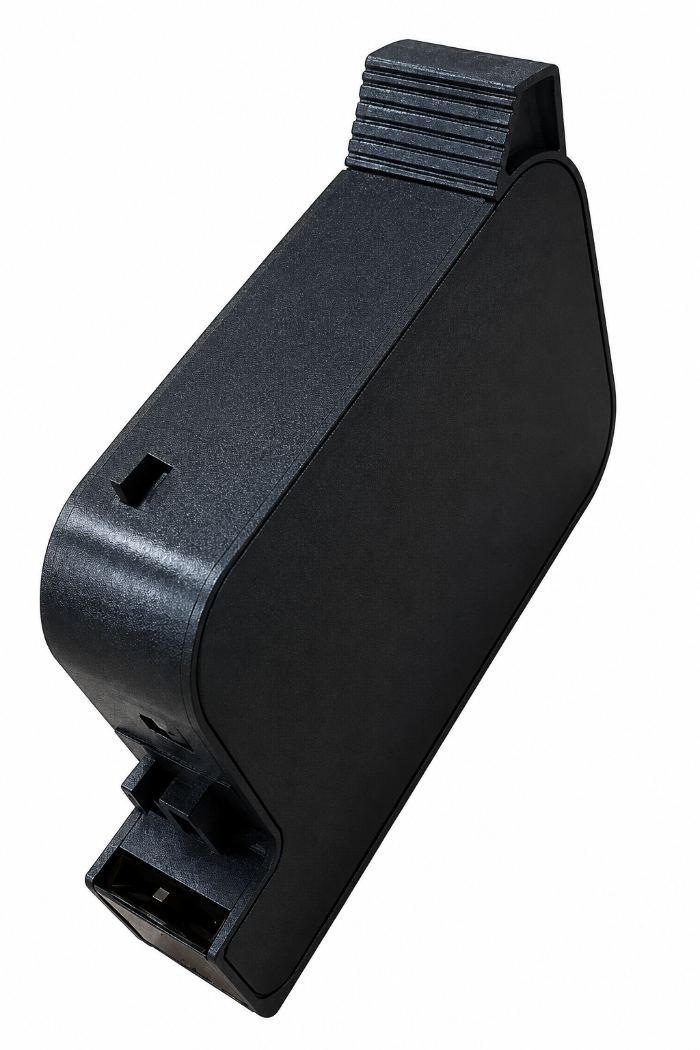

HP ( ½” )

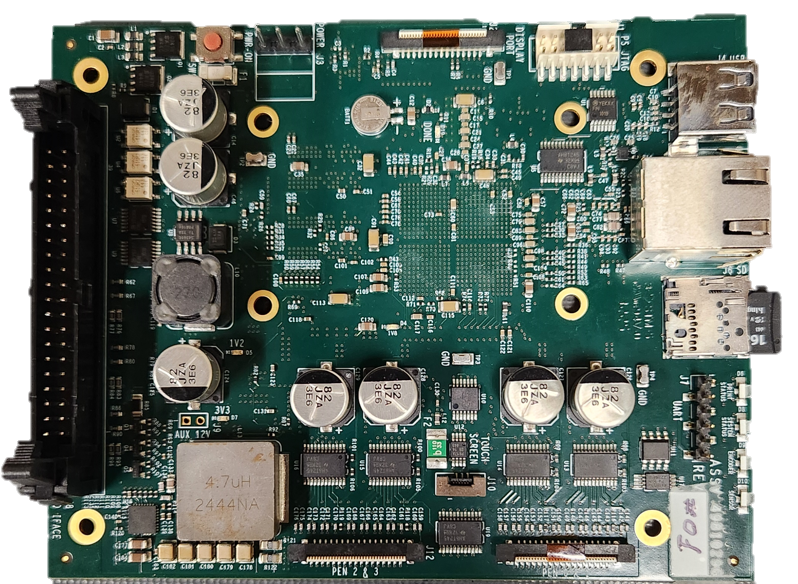

Inside the controller

Drive up to 4 print heads from one board

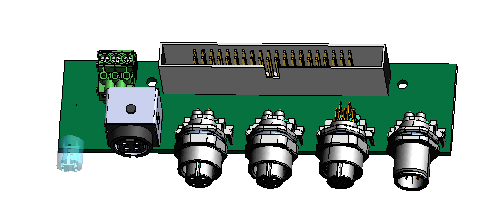

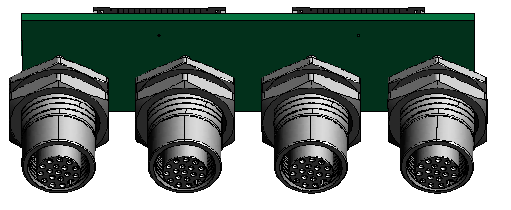

<—- Print Trigger, Encoder, 3 Inputs, 3 Outputs, Daisy Chain

HP TIJ vs Brady TIJ

Key ParametersHP 0.5”Brady Aqueous 1”Brady Solvent 1”
Print Swath12.7mm / 0.5 in26.9mm / 1.06 in26.9mm / 1.06 in
Drop Size30 pl40-50pl30pl
Nozzles per Inch600600600
Print Resolution600dpi600dpi600 dpi
Firing Frequency15 kHz20 kHz20 kHz
Throw Distanceup to 5 mmup to 7mmup to 7mm
Cartridge Capacity40ml/Bulk60ml60ml


Max Speed

Horizontal Resolution ½” HP ft/min 1” Brady ft/min
600 dpi 150 165
300 dpi 250 330
150 dpi* 500

UC12 Inks Update

OCT 2026Brady ( 1” ) Solvent and Aqueous — available at launch
DEC 2026HP ( ½” ) Solvent and Aqueous

See the UC12 print on your packaging.
